Manufacturer code: KrRT-7337Н

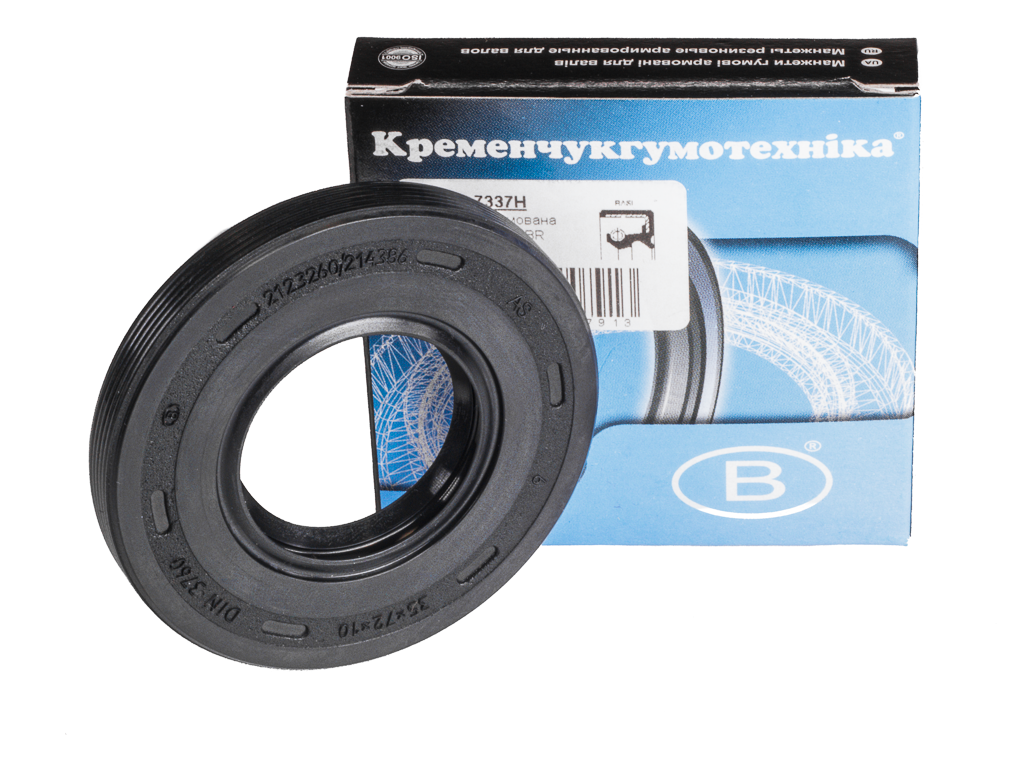

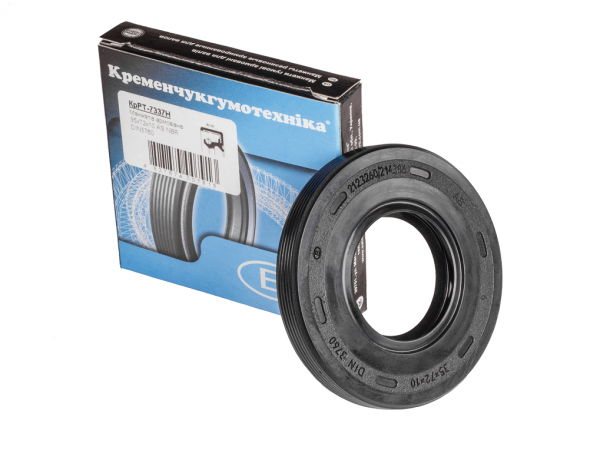

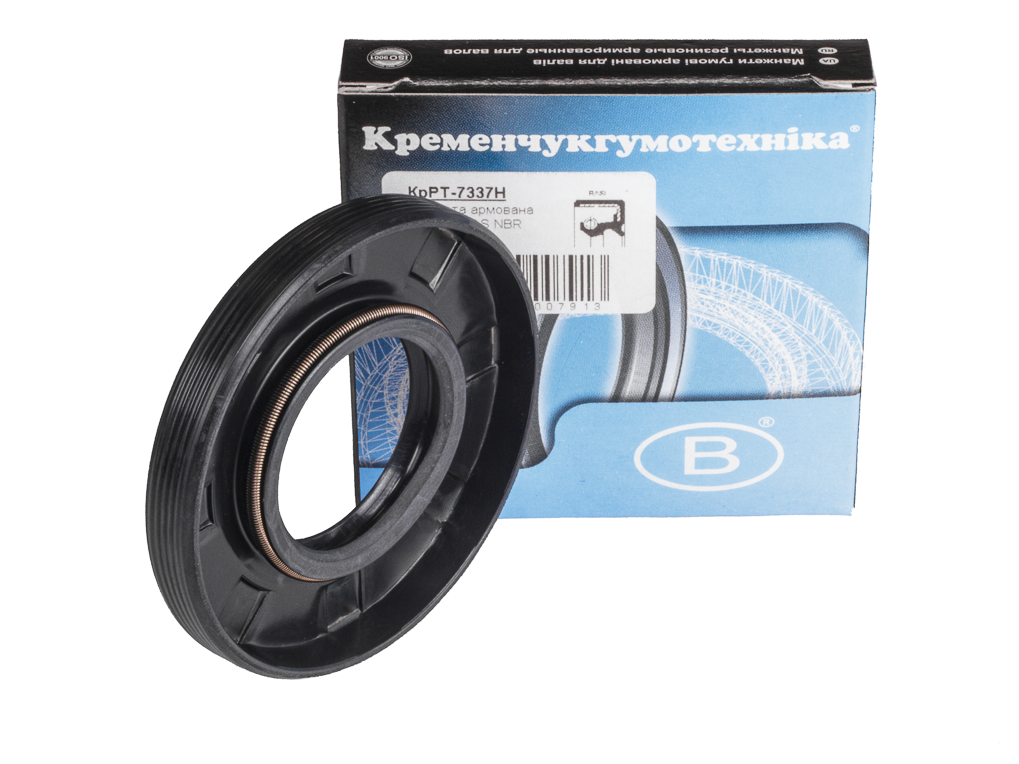

Rotary Shaft Seal AS 35x72x10 NBR DIN 3760 2123260/214386
35x72x10, 35*72*10, 35-72-10, 35х72-10 Oil-seal for diaphragm piston pump Tolveri, a spare part for the Polish potato harvester Anna Z-644. Oil seal 35x72x10 mm for bearing 6207, which is installed in the bevel gear housing. Prevents oil leakage from the gearbox. For collar pump P100 "Agroplast", collar for headers FANTINI LH2-L02, sprayer, CLAAS (214386) (212326.0P), 000212326, 02143860, 214386.1, 000212326.0, 212326, 0002123260, 212326.0, 000214386.1, 2123260, 0002143861, 214386, 0214386.0, 214386.1
SIZES
Size, mm:
35x72x10
d (shaft):
35
D (bore):
72
h (height):
10
RUBBER
Material:
Nitrile-butadiene rubber (NBR)
Color:
Black
Rubber type acc. to standard:
1 (NBR, -45° ... +100°C)
CHARACTERISTICS
Dust protection:
with dustlip
Shaft rotation:
reverse (without hydrodynamic helixes)
Construction:
metal case fully rubberred
Design code:
BASLX7
Working edge type
mechanically trimmed
USE
More catalogue numbers:
214386; 212326.0P; 000212326; 02143860; 214386.1; 000212326.0; 212326; 0002123260; 212326.0; 000214386.1; 2123260; 0002143861; 214386; 0214386.0; 214386.1
Use:
CLAAS
