Products

We specialize in production of oil-seals (rotary shaft seals with garter spring) and other rubber-metal bounded products. Also we make: rubber parts for brake systems, radial shaft seals, silent-blocks, protective rubber boots, different rubber plugs, caps and grommets for cablesystems, water and gear pump seals, rubber glands and gaskets, shock-absorber seals, vibration isolator or mounts, o-rings and other packing elements.

Mainly we produce:


	Nitrile (NBR) Rotary Shaft Seals (or Oil-seals) acc. to DIN 3760, DIN 3761, GOST 8752-79, ISO 6194, JIS B2402, SAE J110b, J111b, J946c, SMS 2290, 2291 with one or two garter springs working edge can be mechanically trimmed or formed in mold compounds of sulfur or peroxide cure options for -45°C and -60°C low temperature resistance

	Polyacrylic (ACM) Rotary Shaft Seals (Oil-seals) with garter spring trimmed working edge with hydrodynamic helixes (right or left shaft rotation) color: black

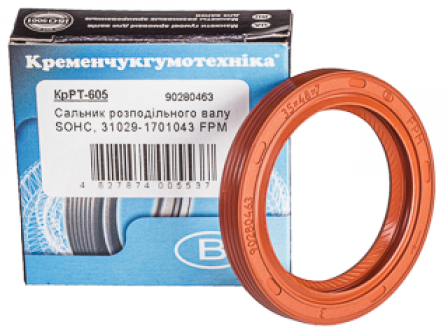

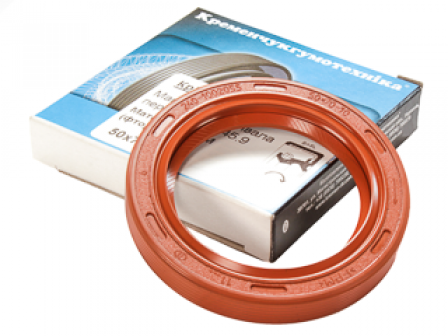

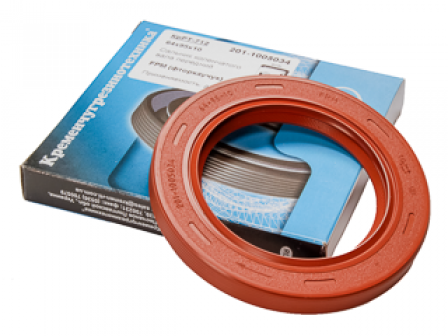

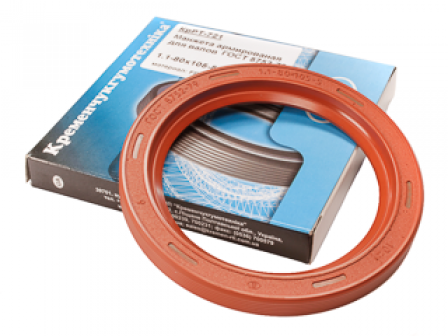

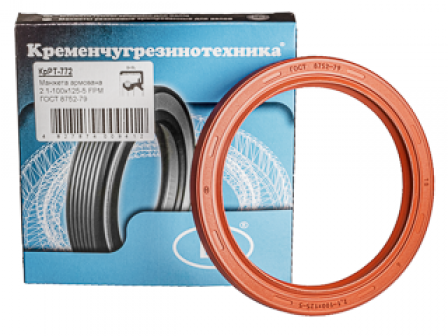

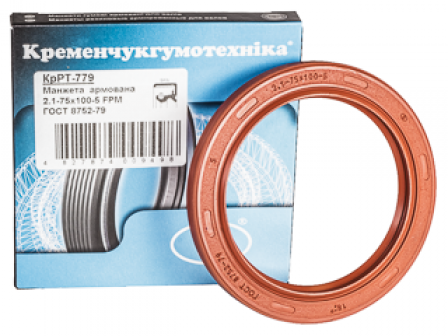

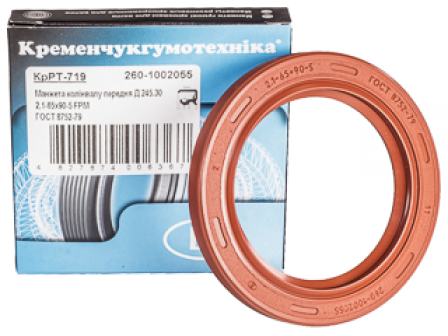

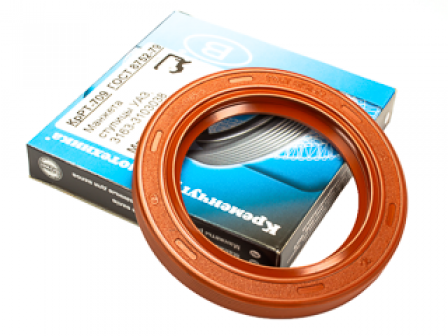

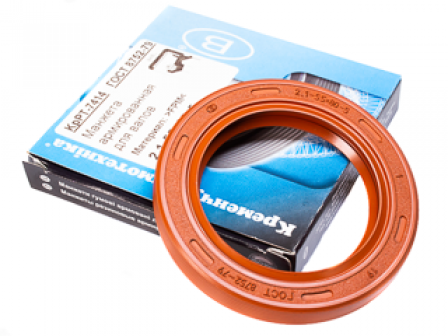

	Fluoroelastomer (FPM/FKM/VITON) Rotary Shaft Seals (Oil-seals) acc. to DIN 3760, DIN 3761, GOST 8752-79, ISO 6194, JIS B2402, SAE J110b, J111b, J946c, J1002, SMS 2290, 2291 with one or two garter springs, stainless as option several types of fluoroelastomers for different medias: type A, B, F, GLT, Aflas, Kel-F/SKF-32 (fluoroelastomer #1) etc. diamine, bisphenol or peroxide cured special anti-friction additions as option standard colors: red (Viton), black (for #1, Aflas etc), possible colors: green, brown

	NBR, HNBR, EPDM, MVQ (Silicone), FMVQ (Fluoro-silicone) Rubber-Metal Rotary Shaft Seals (Oil-Seals) automotive, agriculture, industrial, power train, aftermarket shaft seals; washing machines shaft seals (with two dust lips and stainless steel spring) - using special "german" mold design technology shaft seals for dirt and dust environment (with two working edges and two springs, complex lips) - using special "german" mold design technology; low temperature (-60°C) oil-seals; peroxide or sulfur cure systems; special or custom design seals, by customer's drawing working at customer's brand/logo possible "zero flash" manufacturing possible using nitrogen deflashing & blasting or polishing & trimming

	Larger Diameter Oil-Seals (Trucks, Buses, Agriculture etc.) acc. to DIN 3760, GOST 8752-79, ISO 6194, customer's drawing with garter spring current possibility - max 300 mm O.D.

	Open Metal Case Rotary Shaft Seals (Oil-Seals) and Bearing Seals non-fully rubbered metal case calibrated metal case with garter spring hardmetal stamping automatic post chamfering automatic glue (adhesive) applying automatic working edge trimming phosphate treated metal case or blasted metal case special film coating - to protect the surphase from corrosion during storage bearing seals can be produced with Zinc coated metal case using materials: NBR, EPDM, ACM, FPM, MVQ, text can be marked directly on metal case

	Shock-absorber seals and Different Rubber-Metal products with one or two garter springs seal withstand to 2 millions cycles of lengthwise movements during testing

	Polychloroprene (CR) Rubber & Rubber-Metal Bellows zinc treated outer metal case
	Rubber CV Boots and Half-Axle Boots


	Valve Stem Seals materials: FPM/FKM/Viton or ACM colors: FPM - red, green, ACM - black 4 automatic stamping lines "RASTER" installed to produce metal case in high speed - from 200 to 1200 pcs per minute

	EPDM Rubber Seals for Hydraulic Brake Cylinders (Brake parts) DOT-3/DOT-4 working media made using transfer molding technique V-ring seals are trimmed on precision machines. ring-type brake seals with all working surfaces are polishing on special automatic machines (4 pcs). Europe and USA elastomers origin only, peroxide cured, low compression set (21%), best compound properties

	IR/SBR Vibroinsulators, Spark-Plug Caps, Car Suspension Parts, other Molded Rubber & Rubber-Metal Products

	Silent-blocks (Rubber-Metal) Best rubber to metal bond

	O-rings made from various materials FKM/FPM (Viton A, B, F, Kel-F, Aflas etc. by request - red, black) FMVQ (transparent, blue) MVQ FMVQ NBR EPDM CR IR/BR/SBR No flash - nitrogen defashing & blasting is used

	Different type cardan shaft (driveshaft) seals Can be manufactured in very big quantities (about hundred thousand in a week on 1 molding machine - supported by automatic high-speed metal stamping 200-1200 pcs/min).

WE CAN PRODUCE: RADIAL SHAFT SEALS Engine Seals Transmission Seals Monotube Shock Seals Twintube Shock and Strut Seals Power Steering Seals Bearing Seals Light Axle Seals and Heavy Axle Seals Industrial Oil Seals Mechanical Face Seals Track Roller Seals High Pressure Seals Aerospace Seals Valve Stem Seals Wheel end seals SPECIALTY SEALING PRODUCTS Static Engine Seals Static Transmission Seals Grommets Boots/ Bellows Plug & Seal Connectors Joint Seals Diaphragms Gas Seals VIBRATION CONTROL DEVICES Torsional Vibration Dampers Engine Mount Systems Center Bearing Support Linear Mass Dampers Bushings Jounce Bumpers Body & Chassis Mounts Spring Seat Isolators O-RINGS O-rings X-rings D-rings GASKETS Oil pan gaskets Rocker cover gaskets Cylinder head gaskets Cover gaskets Rubber covered metal gaskets Molded gaskets Elastomeric gaskets FLUID POWER PRODUCTS Piston seals, Bounded piston seals Rod seals, Buffer Seals, and Wipers Precision Wear rings Back-up Rings Ball Valve Seats Automotive seals for suspension (including Banded Pistons), transmission, steering, air conditioning, and brake systems Wide variety of standard and custom Industrial applications: cylinders, valves, low friction bushings, and others Heavy Duty Hydraulics BRAKES Caliper Piston Seals Caliper Piston Boots Brake Booster Diaphragms Brake Caliper Components Brake Drum Components Brake Booster Components Brake Master Cylinder Components ABS System Components Pneumatic Seals Rod packing Piston seals Rubber-metal pistons
