Manufacturer code: KrRT-7235Ф

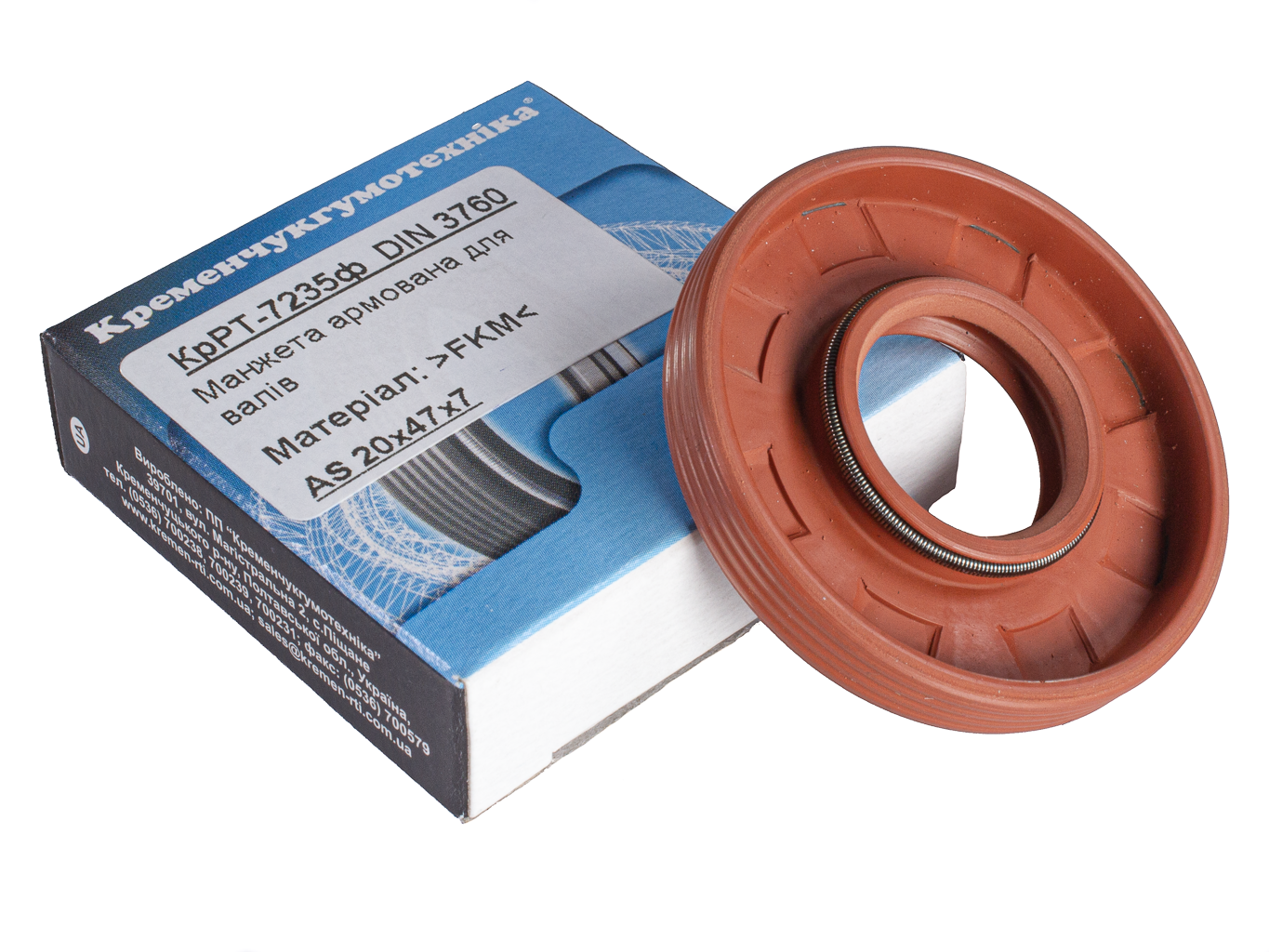

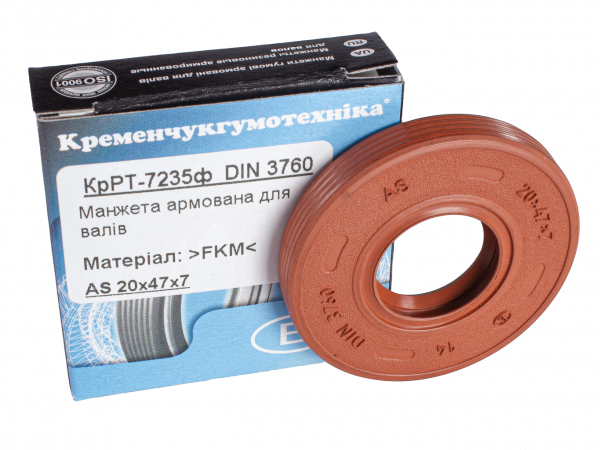

Rotary Shaft Seal AS 20х47x7 FKM DIN 3760
20х47х7, 20*47*7, 20x47x7, 20-47-7, FPM Viton oil-seal
SIZES
Size, mm:
20х47х7
d (shaft):
20
D (bore):
47
h (height):
7
RUBBER
Material:
Fluoroelastomer (FPM)
Color:
red
Rubber type acc. to standard:
5 (FPM-26, -30° ... +170°C, max +230°C)
CHARACTERISTICS
Dust protection:
with dustlip
Shaft rotation:
reverse (without hydrodynamic helixes)
Construction:
metal case fully rubberred
Design code:
BAUMSLX7
Working edge type
mechanically trimmed
