Manufacturer code: KrRT-7234Ф

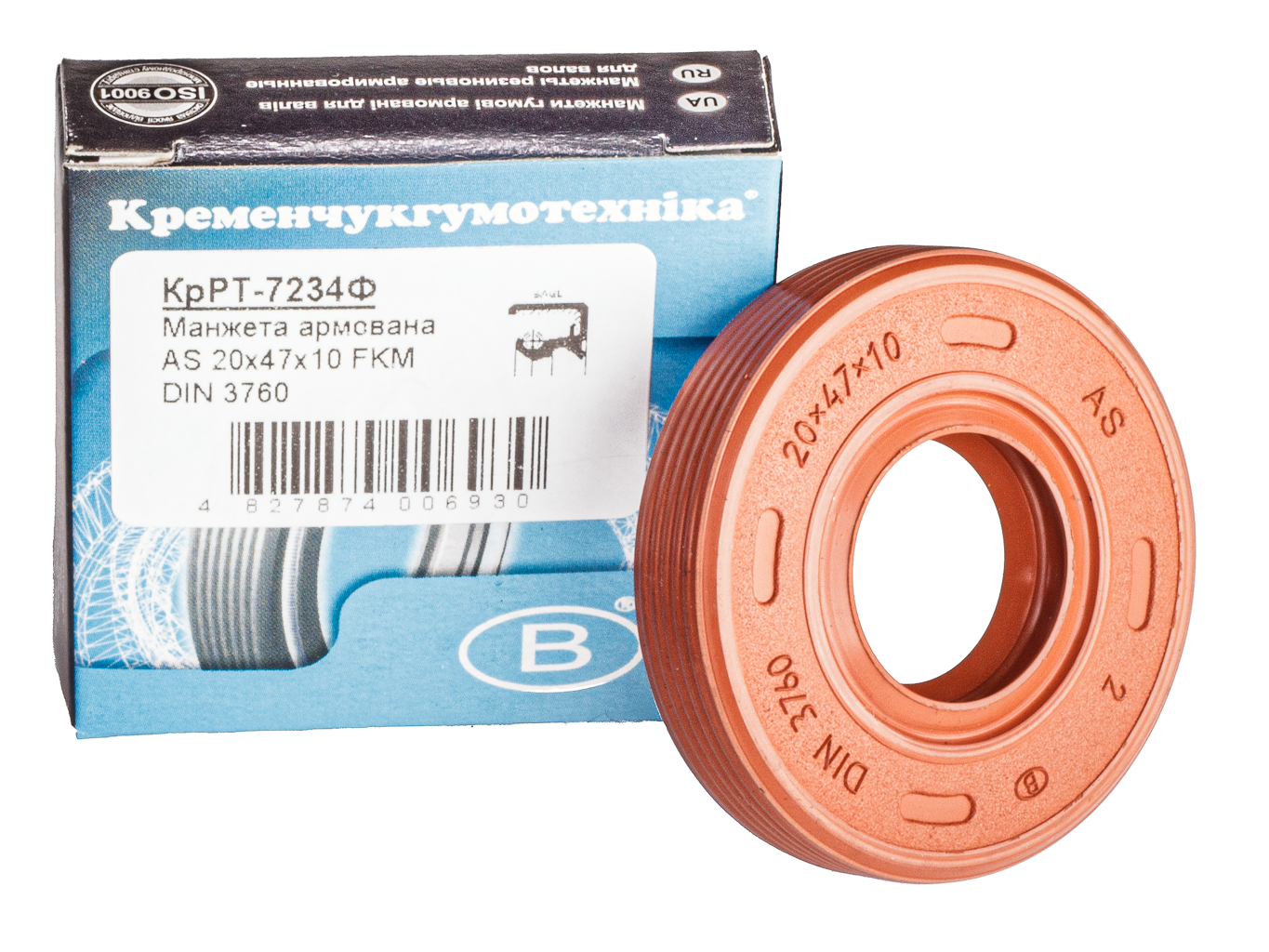

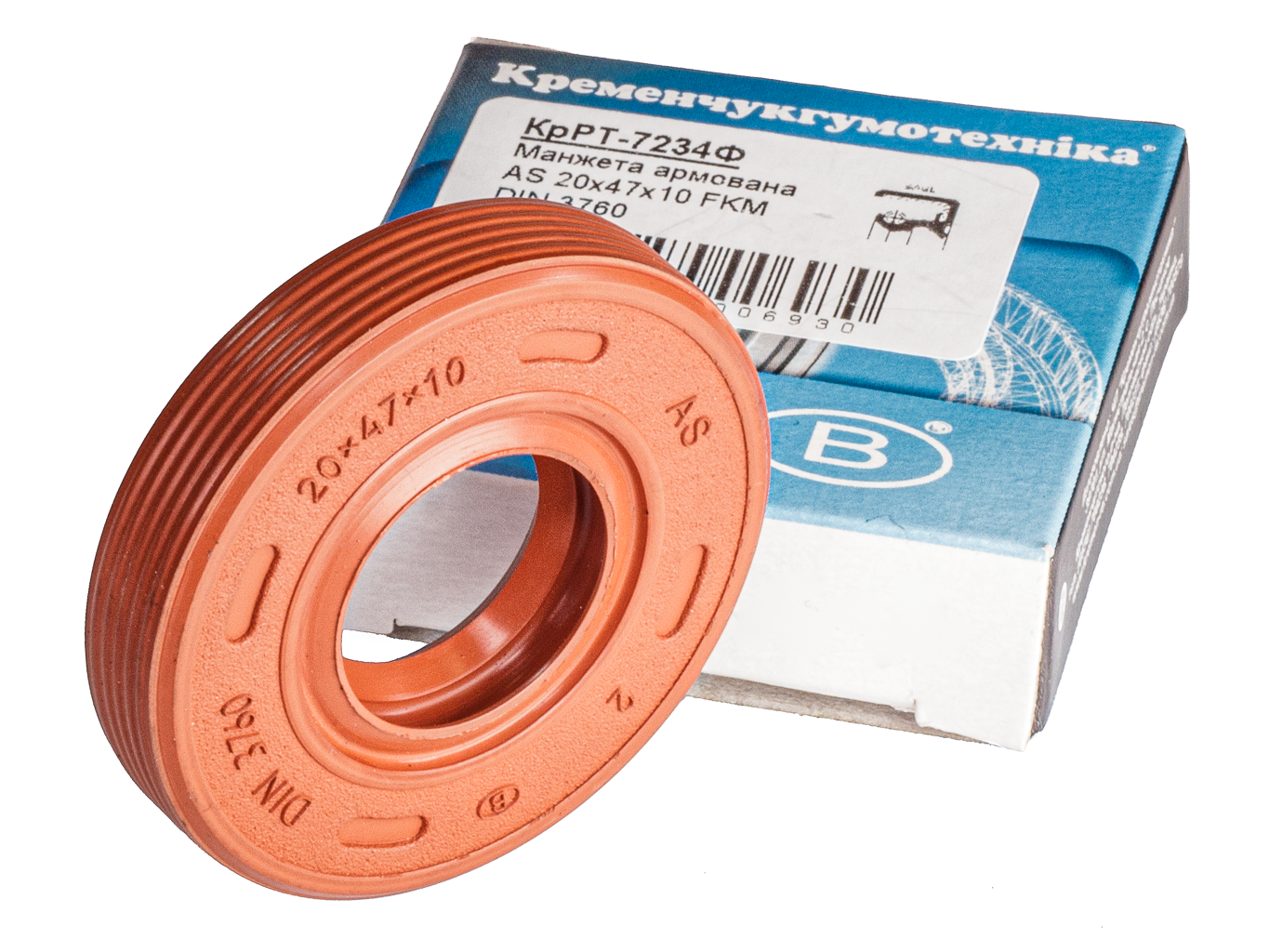

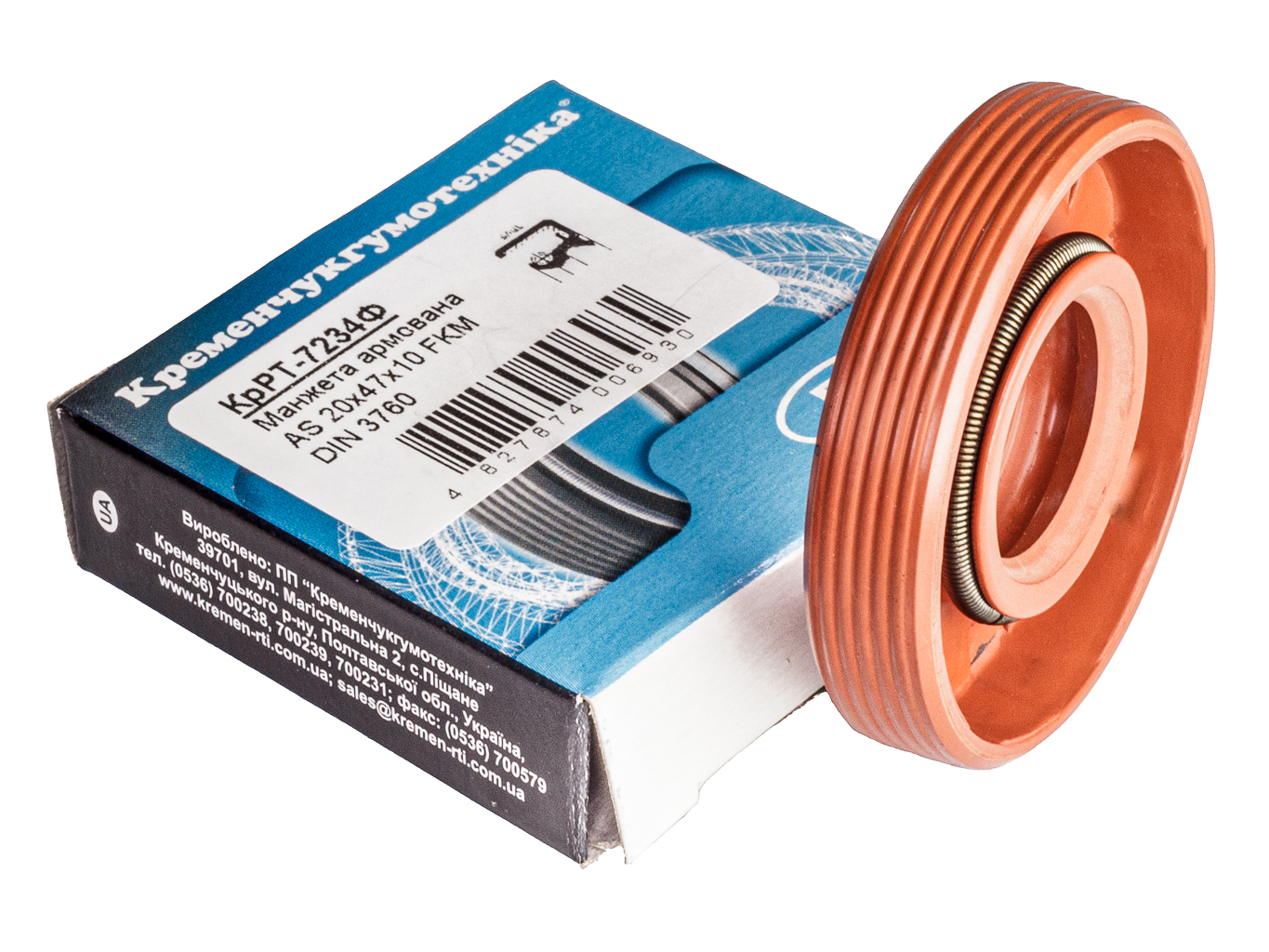

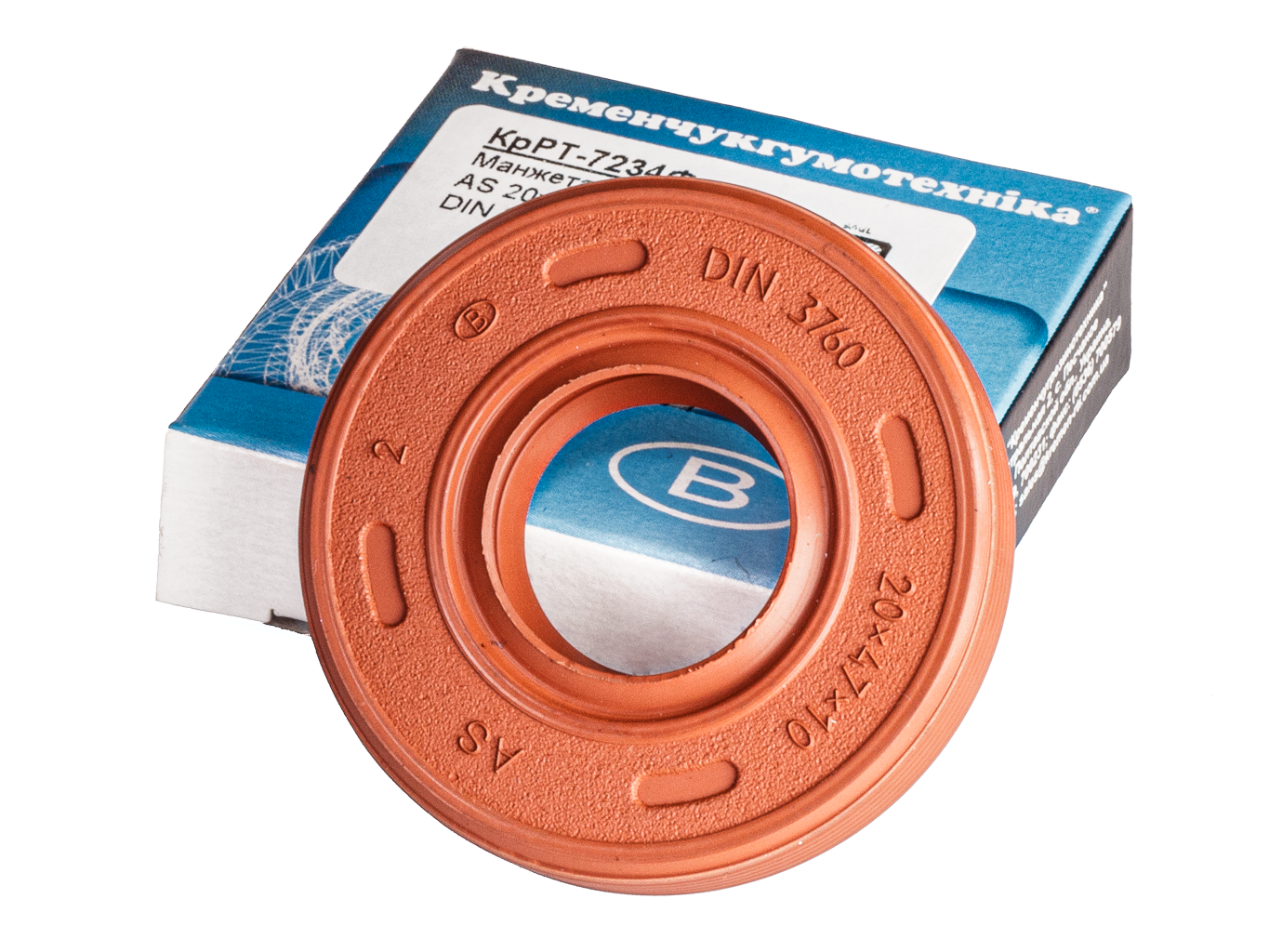

Rotary Shaft Seal AS 20х47x10 FKM DIN 3760
20х47х10, 20*47*10, 20x47x10, 20-47-10, 105-10441Б oil seal for the motorbike "Minsk" from fluorine rubber FPM Viton :: New Holland M2480, M2580, M2680, M2780
SIZES
Size, mm:
20х47х10
d (shaft):
20
D (bore):
47
h (height):
10
RUBBER
Material:
Fluoroelastomer (FPM)
Color:
red
Rubber type acc. to standard:
5 (FPM-26, -30° ... +170°C, max +230°C)
CHARACTERISTICS
Dust protection:
with dustlip
Shaft rotation:
reverse (without hydrodynamic helixes)
Construction:
metal case fully rubberred
Design code:
BAUMSLX7
Working edge type
mechanically trimmed
CORRESPONDENCE
Seal correspondence to seal by GOST 8752-79/DIN 3760:
2.1-20х47-5
USE
More catalogue numbers:
105-10441Б
Use:
Мотоцикл Минск
Install place/application:
Сальник коленвала
USE
Use:
New Holland
Install place/application:
M2480; M2580; M2680; M2780
