Manufacturer code: KrRT-7424Ф

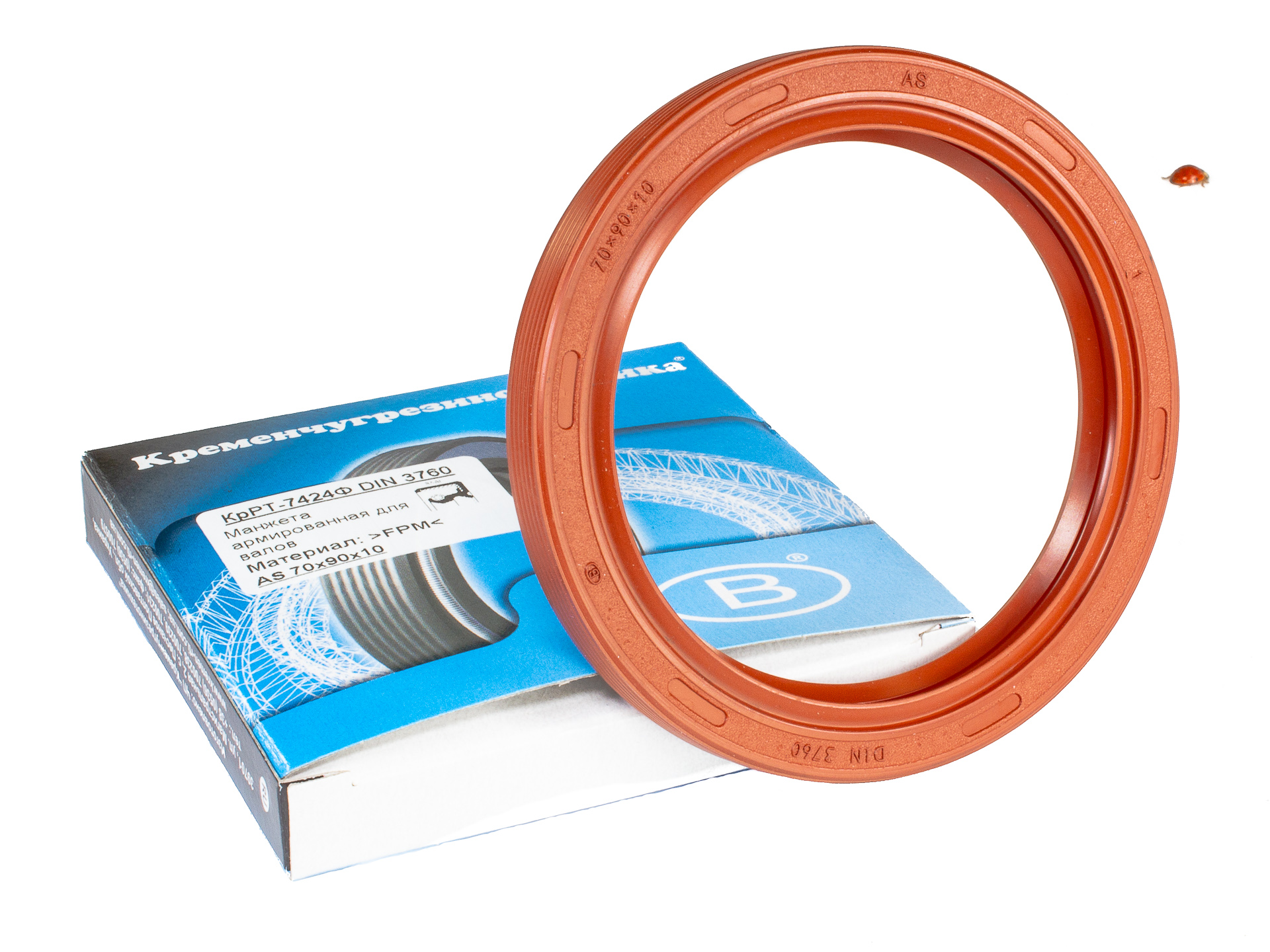

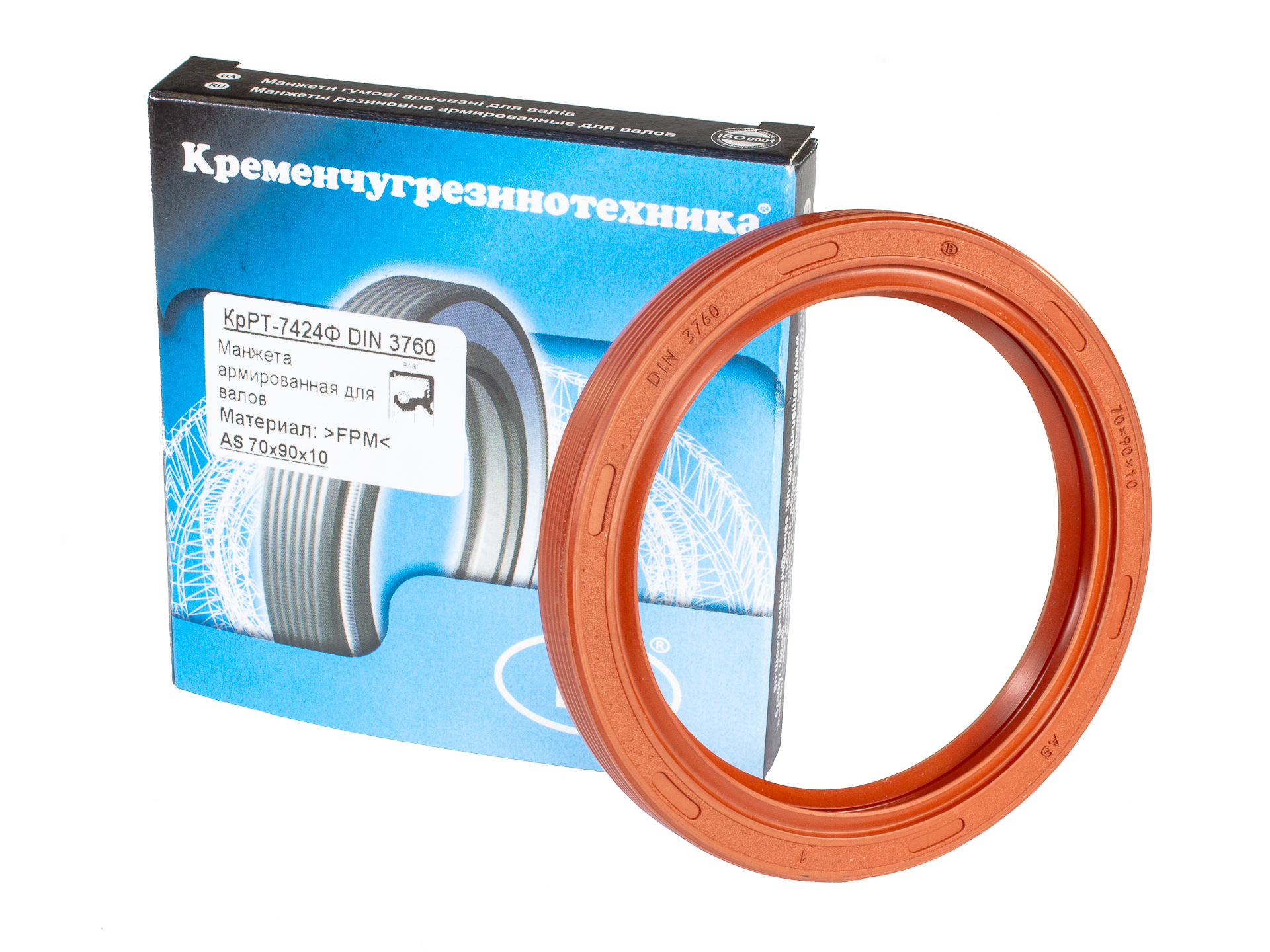

Rotary Shaft Seal AS 70x90x10 FKM DIN 3760
70x90x10, 70*90*10, 70-90-10, 70x90-10 FPM oil-seal 12011533, 025377 Claas 02332290 002332290 12011199 IVECO 8576283 MAN 06562731814 New Holland 151209159 Same 215200360
SIZES
Size, mm:
70x90x10
d (shaft):
70
D (bore):
90
h (height):
10
RUBBER
Material:
Fluoroelastomer (FPM)
Color:
red
Rubber type acc. to standard:
5 (FPM-26, -30° ... +170°C, max +230°C)
CHARACTERISTICS
Dust protection:
with dustlip
Shaft rotation:
reverse (without hydrodynamic helixes)
Construction:
metal case fully rubberred
Design code:
BASLX7
Working edge type
mechanically trimmed
